Product Overview

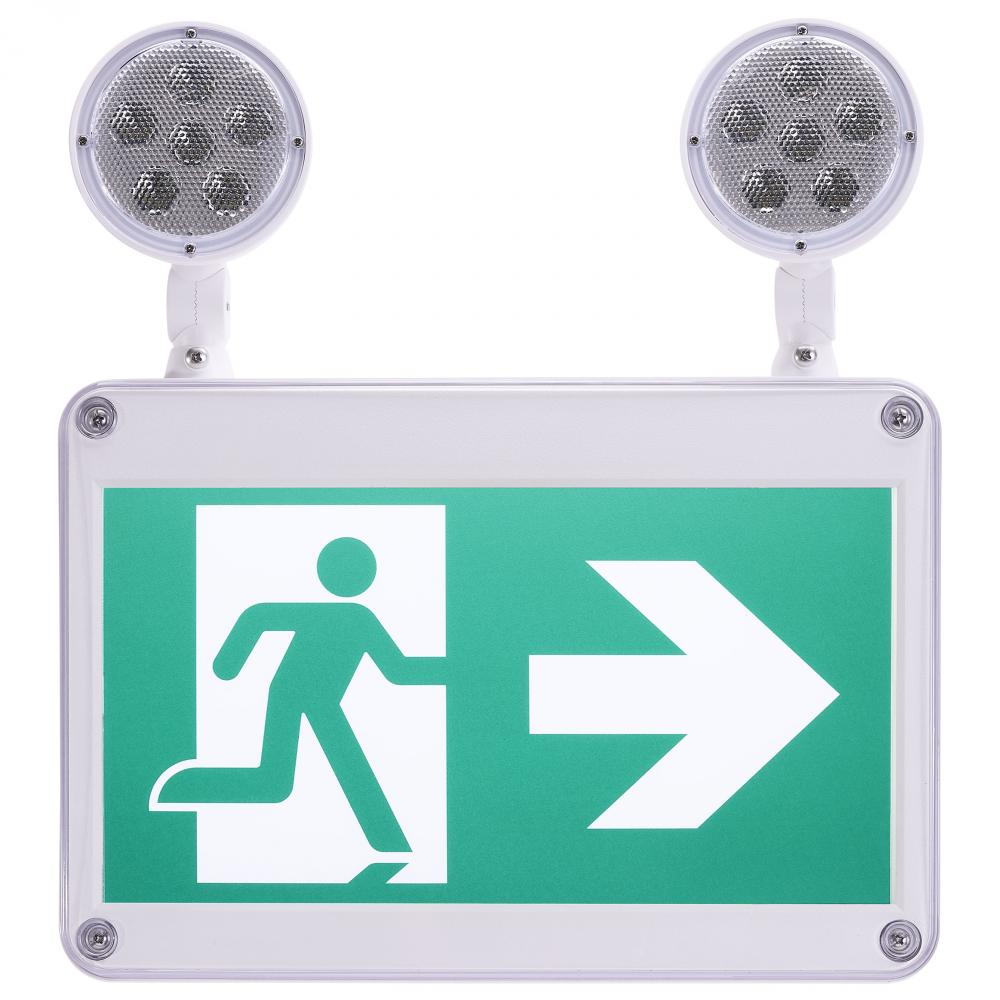

Running Man Green Combo Exit Sign/Emergency Light; 120/347V; 2HR backup; Single/Dual Face; Universal Mounting; Wet Location

Standard Information

Option:

LED

Prop 65

Refinement Options

Category:

Lighting Products

Sub Category:

Exit & Emergency

Style:

Utility

Bulb Shape:

Integrated LED

Bulb Type:

LED

Dimmable:

Non-Dimmable

Harmonized Codes:

9405.61.6000

Lumens:

260L

Ship Carton Height:

14.57

Ship Carton Length:

13.78

Ship Carton Width:

3.35

Warranty:

2-Years

Amps:

0.033/0.012A

ANSI Base:

Integrated

Battery Chemistry:

Ni-MH

CA Prop-65:

Lead

Carton Cubic Feet:

0.3892

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Non-Compliant - Only for sale in Canada

CEC Terse:

Non-Compliant

CEC Web Text:

Non-Compliant

Country Of Origin:

China

CRI:

80+

Depth:

2.5

Efficacy:

65.00 LPW

Feature 1:

Single or Dual Face

Feature 10:

>500 Life Cycles

Feature 2:

Integrated Battery Backup

Feature 3:

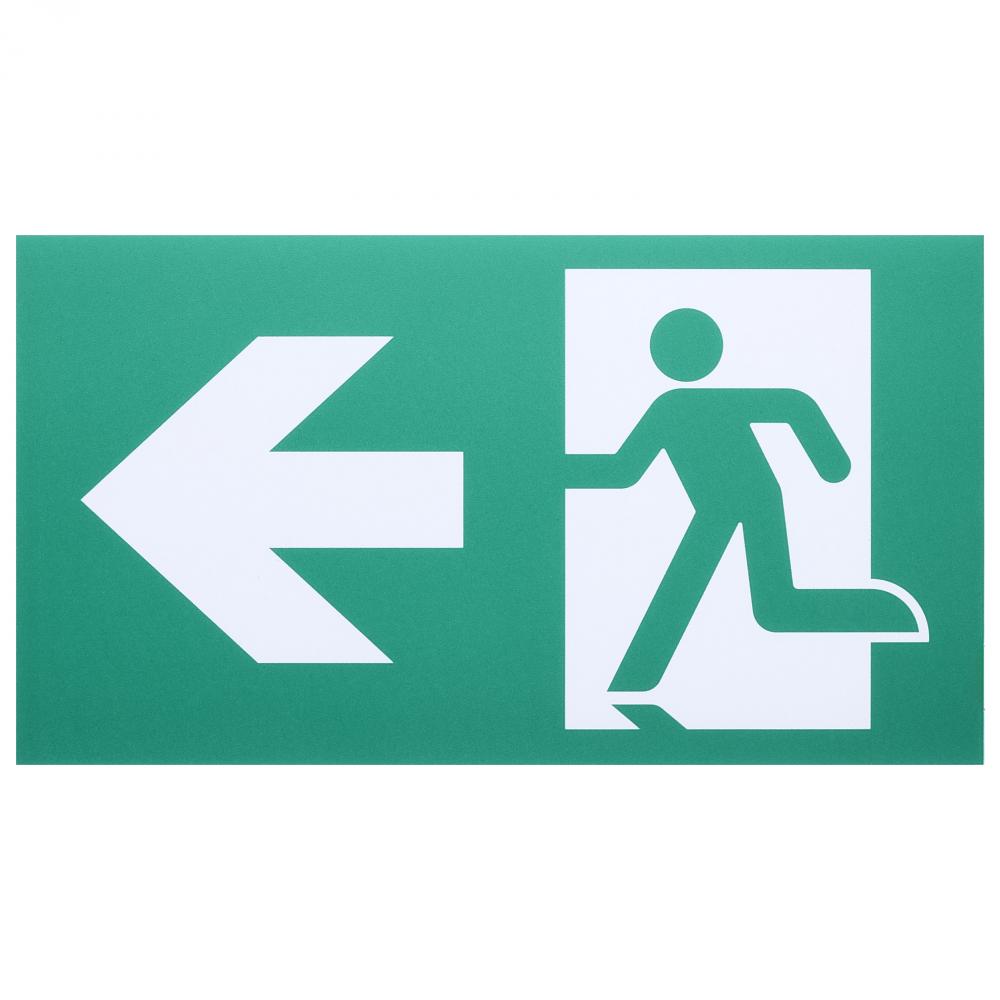

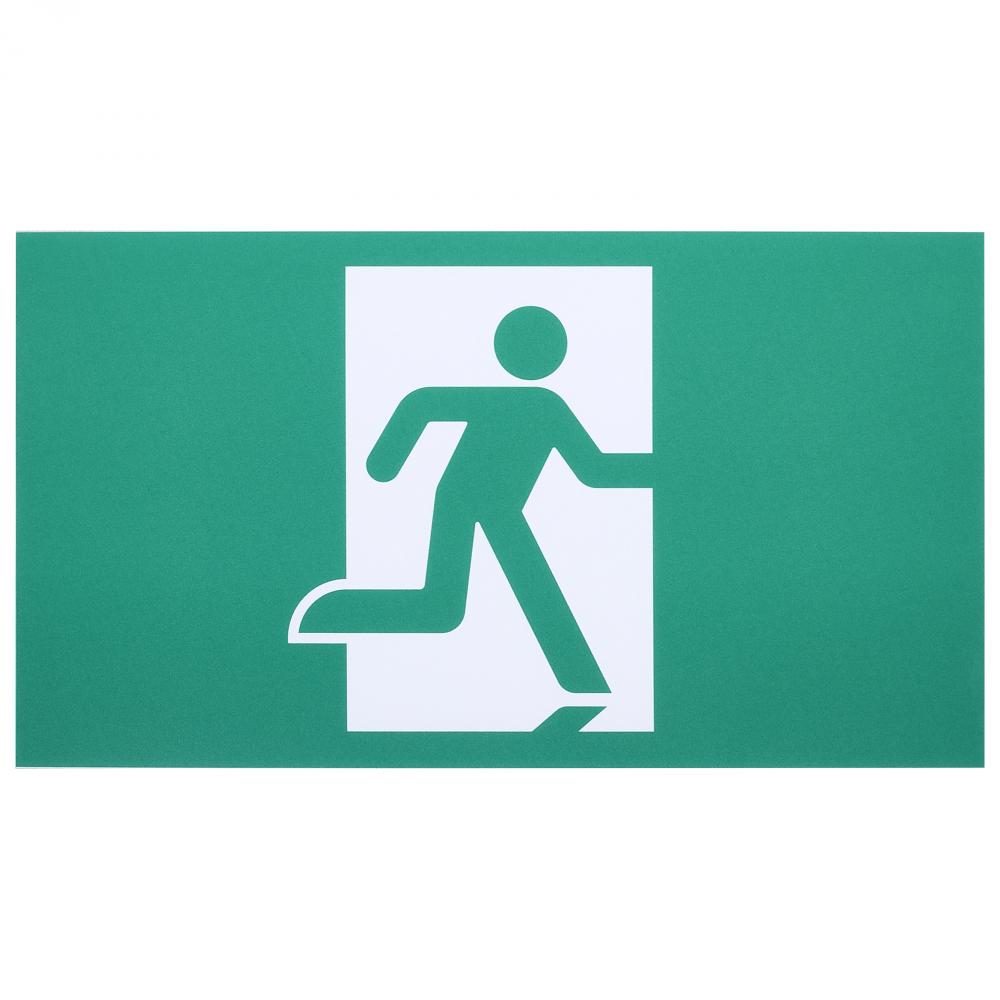

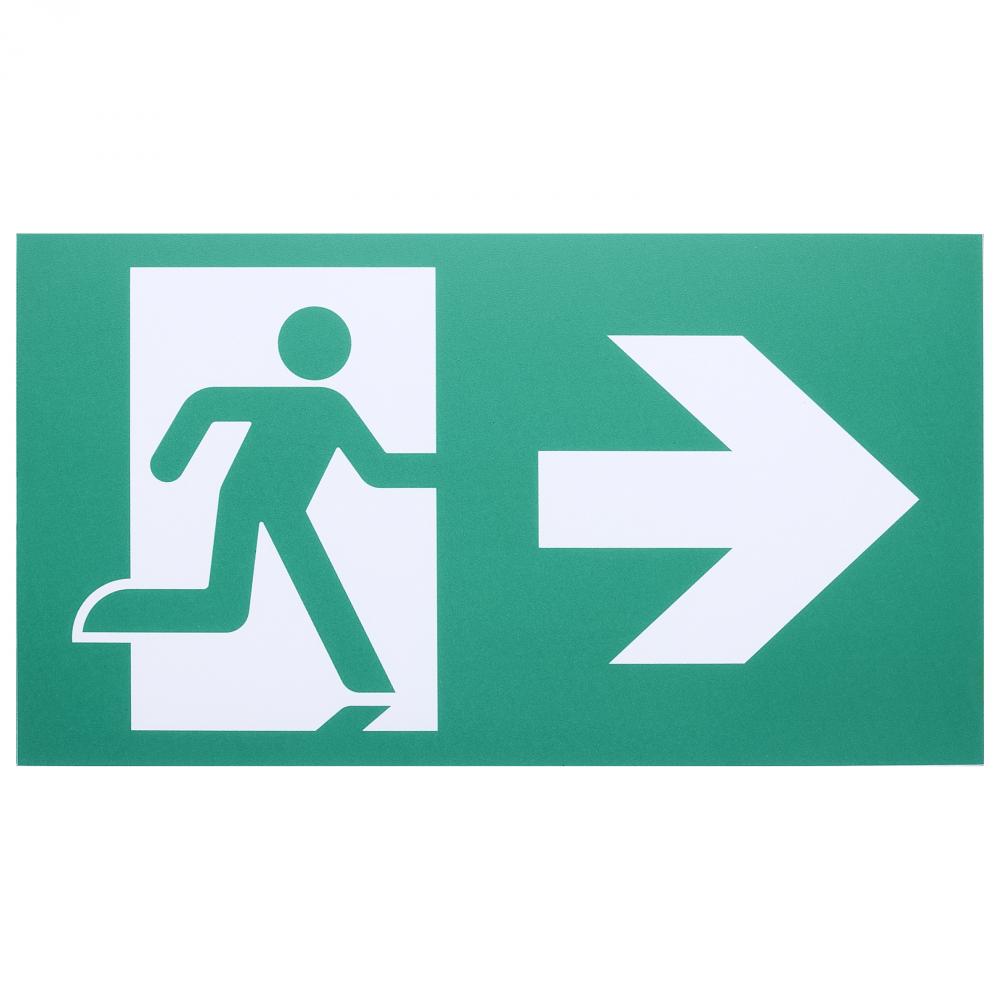

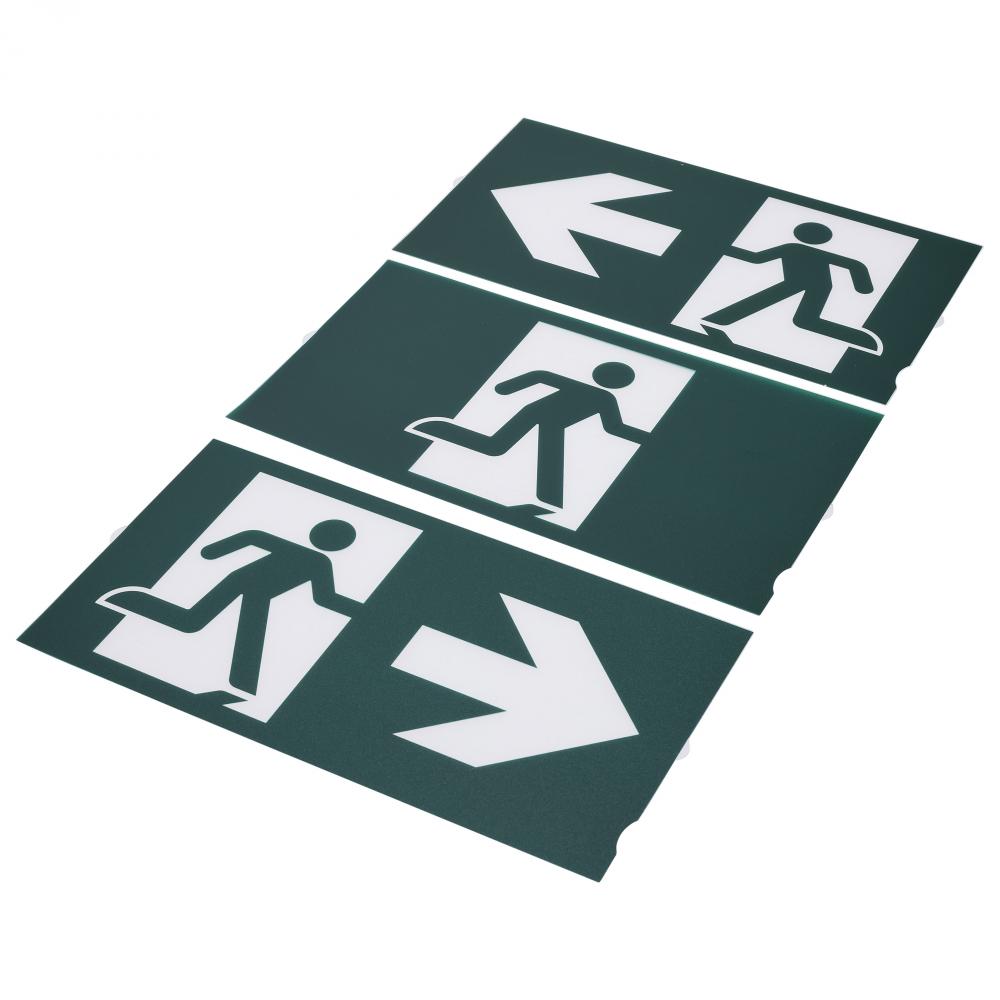

Interchangeable Pictograms

Feature 4:

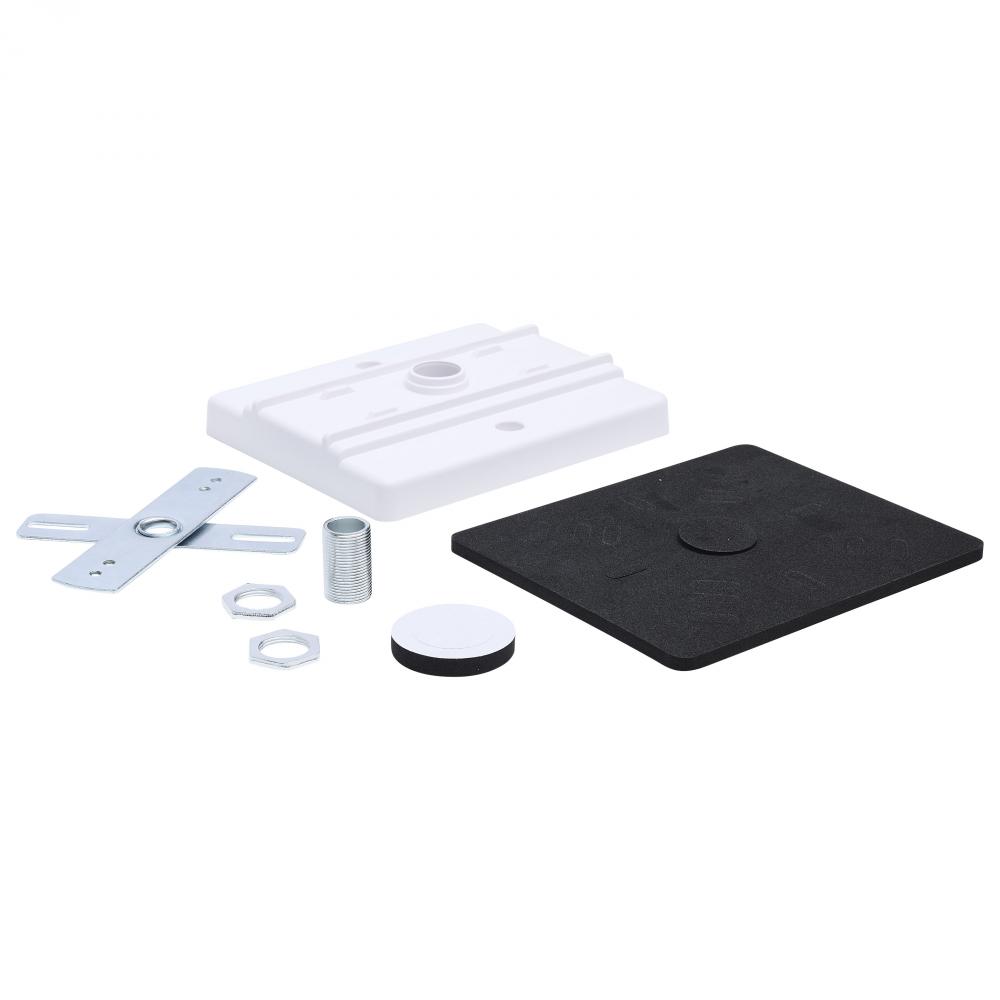

Ceiling, Wall or Side Mounting; Accessories Included

Feature 5:

Wet Location Rated

Feature 6:

120-Minute Battery Run Time

Feature 7:

Complies with ICES-005 Class B

Feature 8:

CSA, OSHA, and NFPA Compliant

Feature 9:

Push-to-Test Button

Finish Family:

White

Has Emergency Battery:

Yes

Indoor Outdoor:

Indoor and Outdoor

IP Rating:

IP65

JA8 Compliant:

No

Lens Finish:

Clear

Lens Material:

Polycarbonate (PC)

Long Description:

Keep your building safe and secure with the SATCO NUVO 67-570 LED Running Man Signs and Emergency Light Combos. Choose single or dual-face installation and customize with the interchangeable pictograms to fit your needs. Combo models offer two adjustable l

Material:

Thermoplastic

Mounting Procedure:

Universal

Operating Frequency:

60Hz

Operating Temprature:

0C (+32F) to +50C (+122F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.8

Quantity In Pack:

1

R9 Value:

15

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

Keep your building safe and secure with the SATCO NUVO LED Running Man Signs and Emergency Light Combos. Choose single or dual-face installation and customize with the interchangeable pictograms to fit your needs. Combo models offer two adjustable light he

Safety Listing:

CSAus

SDS class:

LED_Fixture

Short Description:

EX COMBO-CAN-WET

Sloped Ceiling Compatible:

No

Specification Notes:

Ni-MH Battery; 120 minute discharge time

Temperature (CCT):

5700K

Title 20 Compliant:

No

Title 24 Compliant:

No

Total Harmonic Distortion:

35%-45%

Wattage Selectable:

No

Weight Lb.:

5.07

Manufacturer Info

Manufactured By:

Satco Products Inc.
